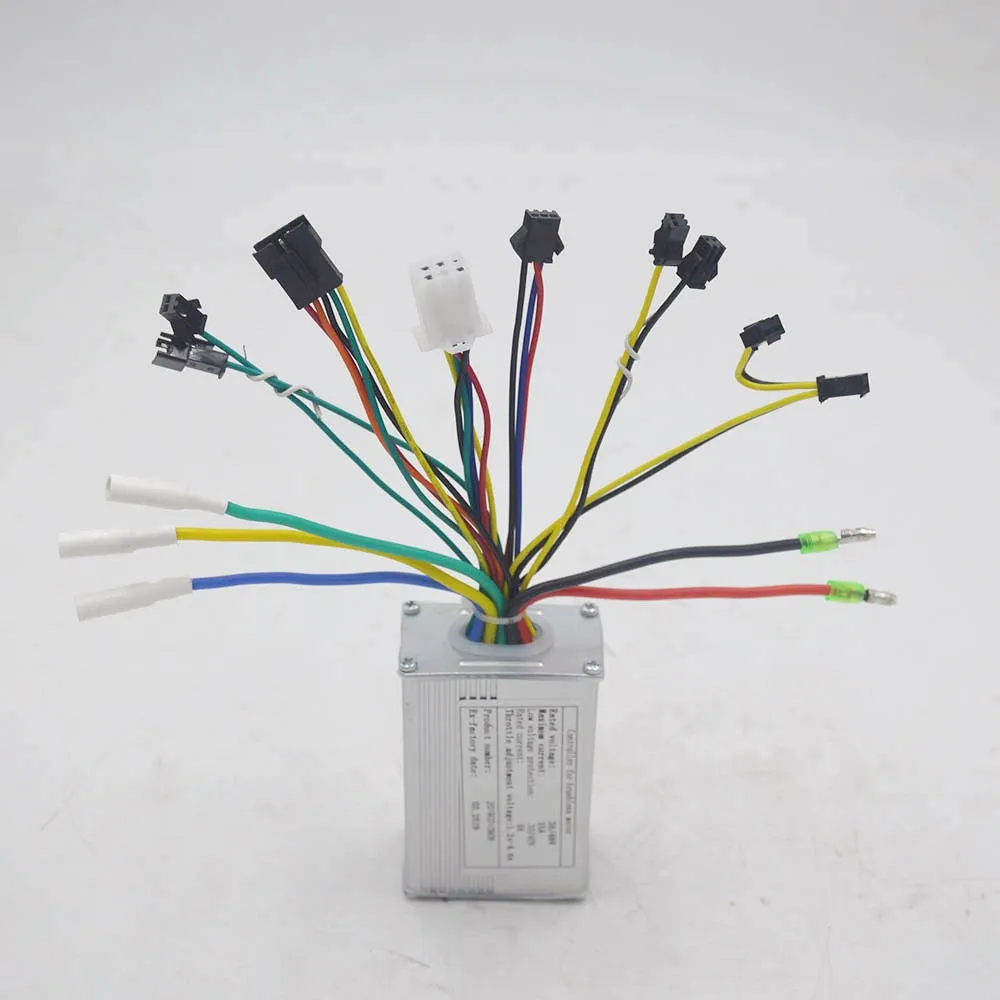

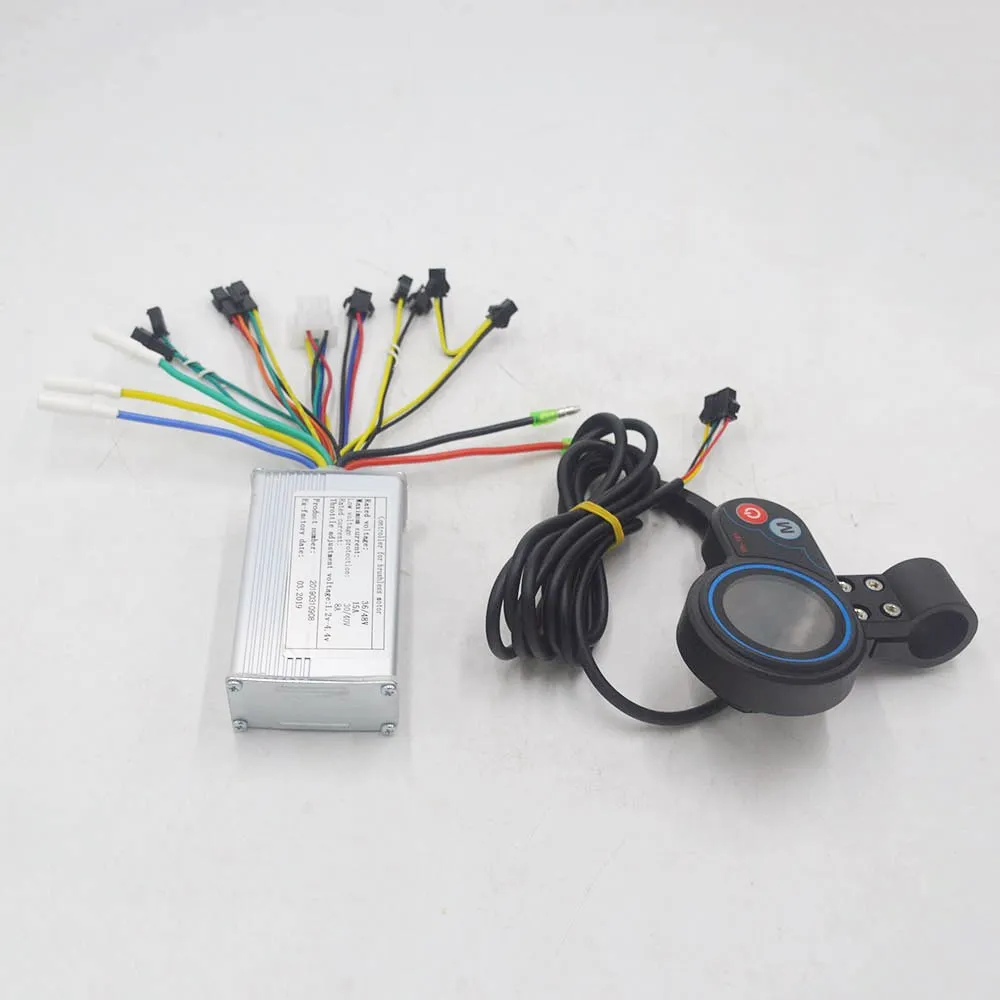

36V 48V 250W/350W electric bike scooter controller brushless with throttle LCD display speed for electric scooter/e bike

Brand Name MEIANDIAN

Type Controller

Voltage 36V/48V

Rated Power 250W/350W

Controller style Brushless controller

Display Yes

Use xiaomi scooter,electrice scooter,electric bike

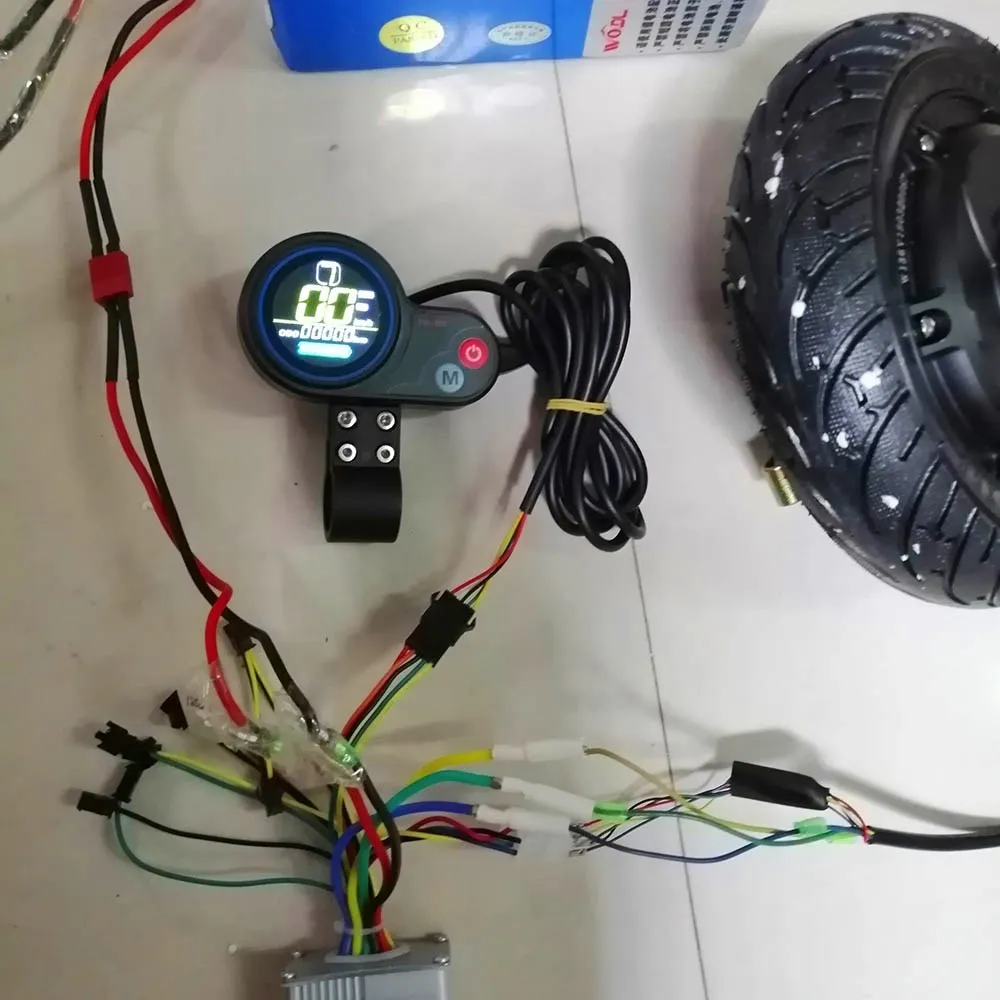

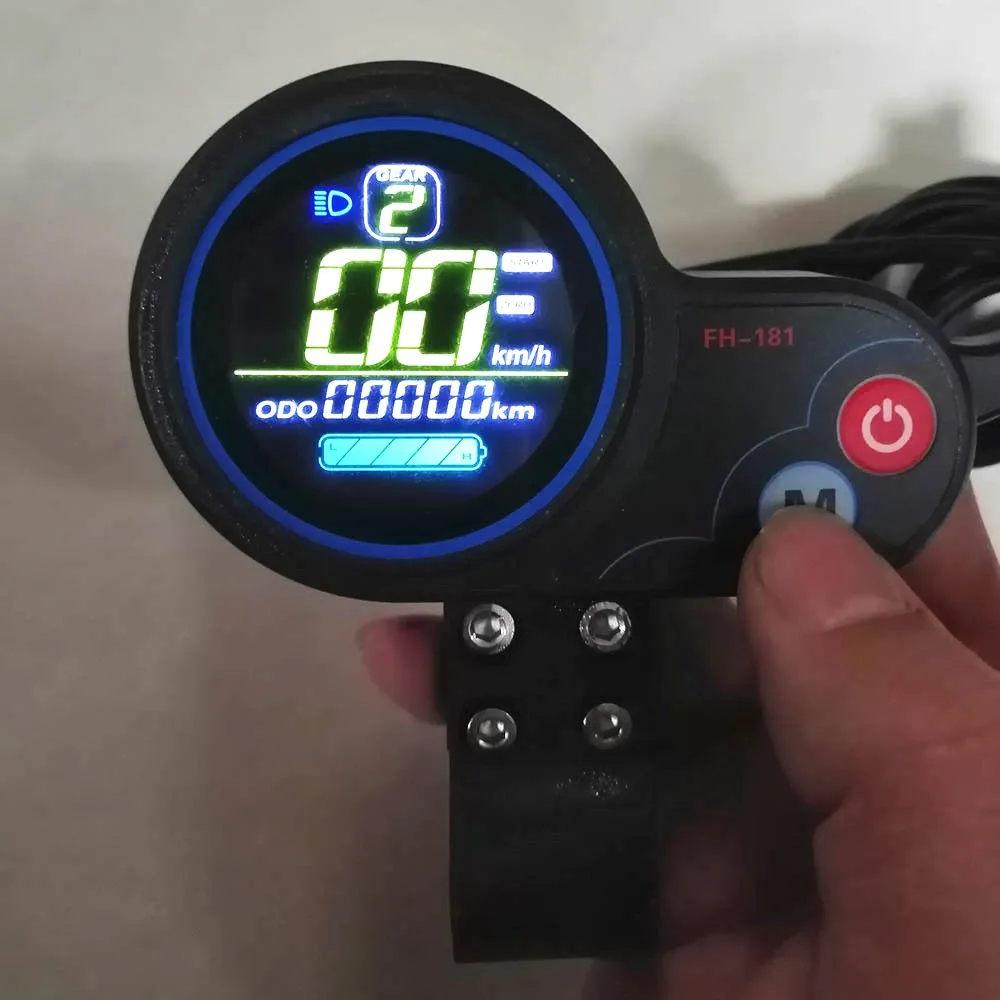

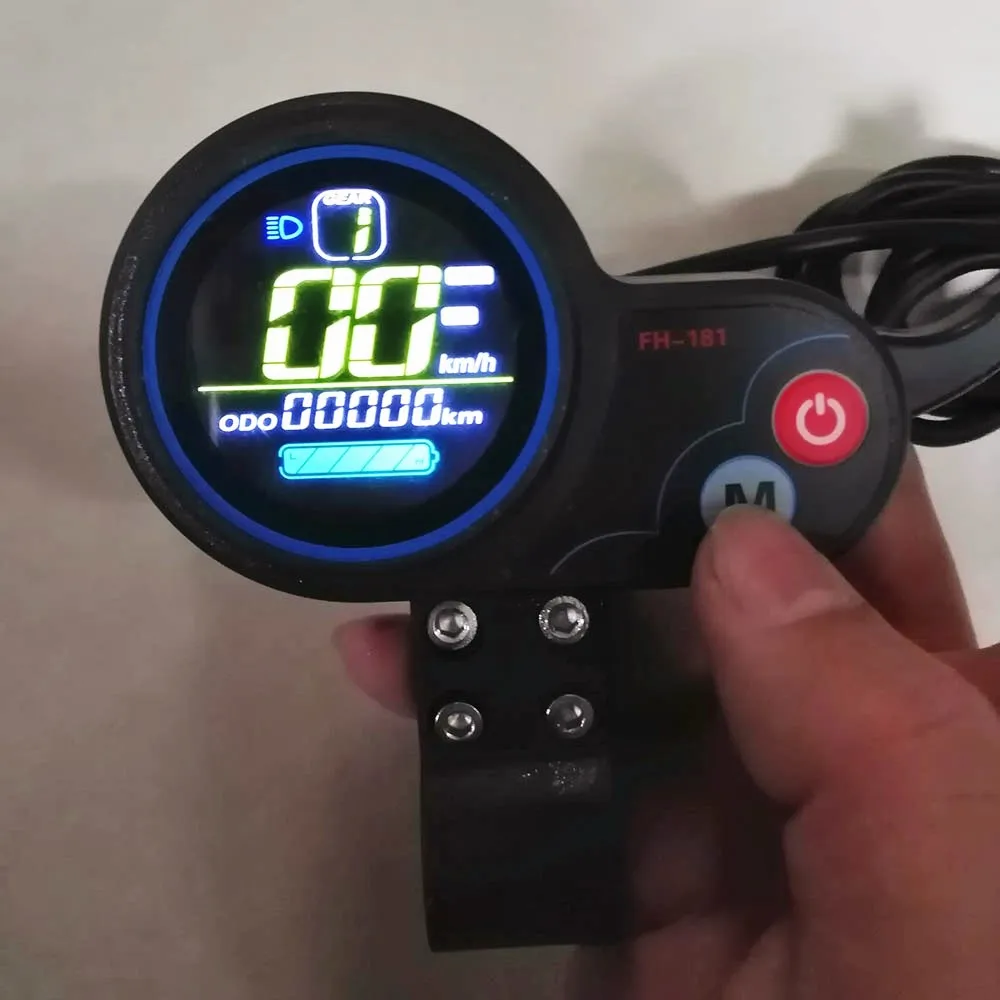

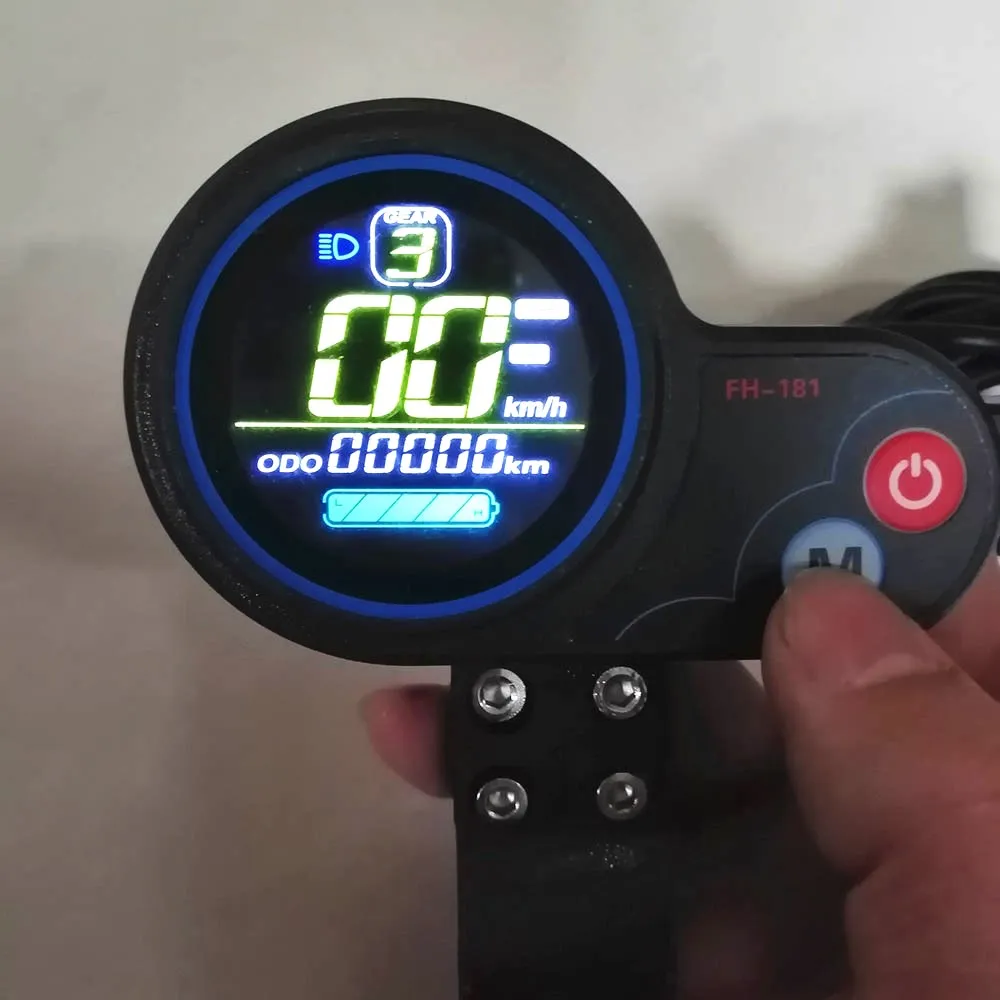

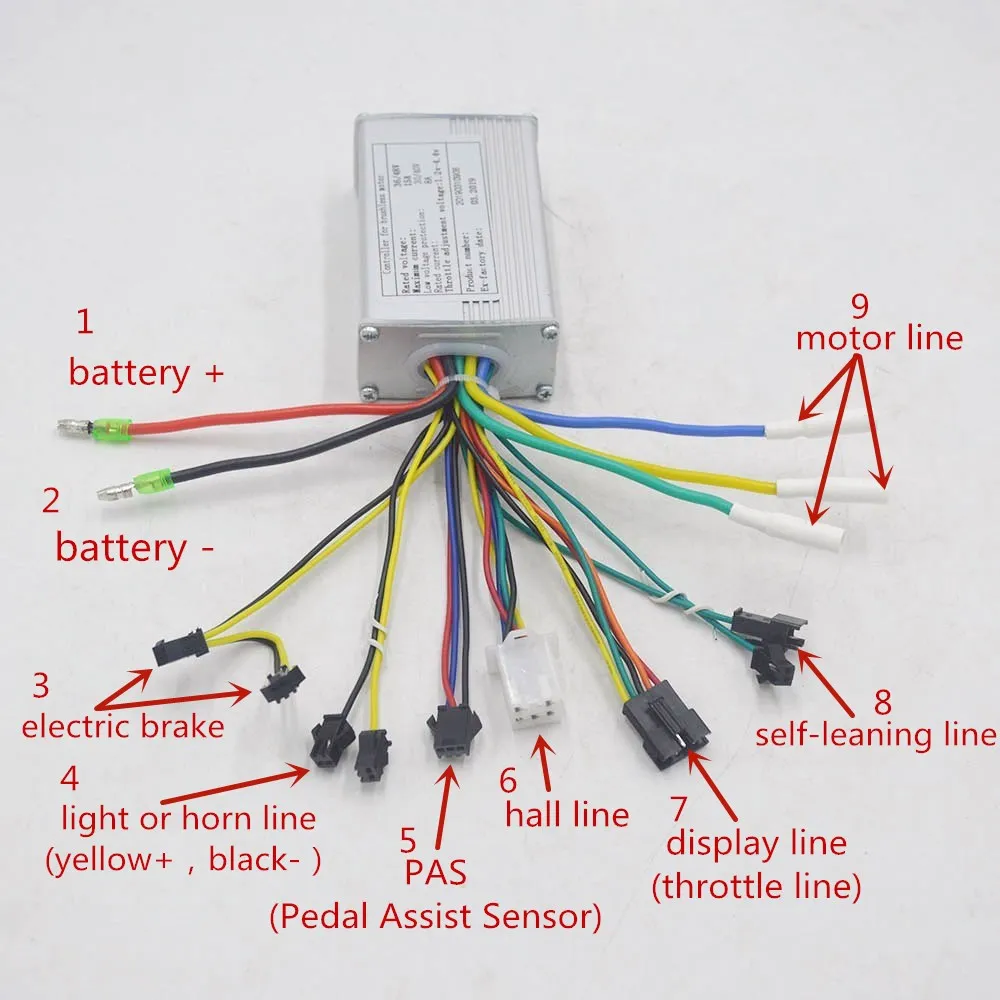

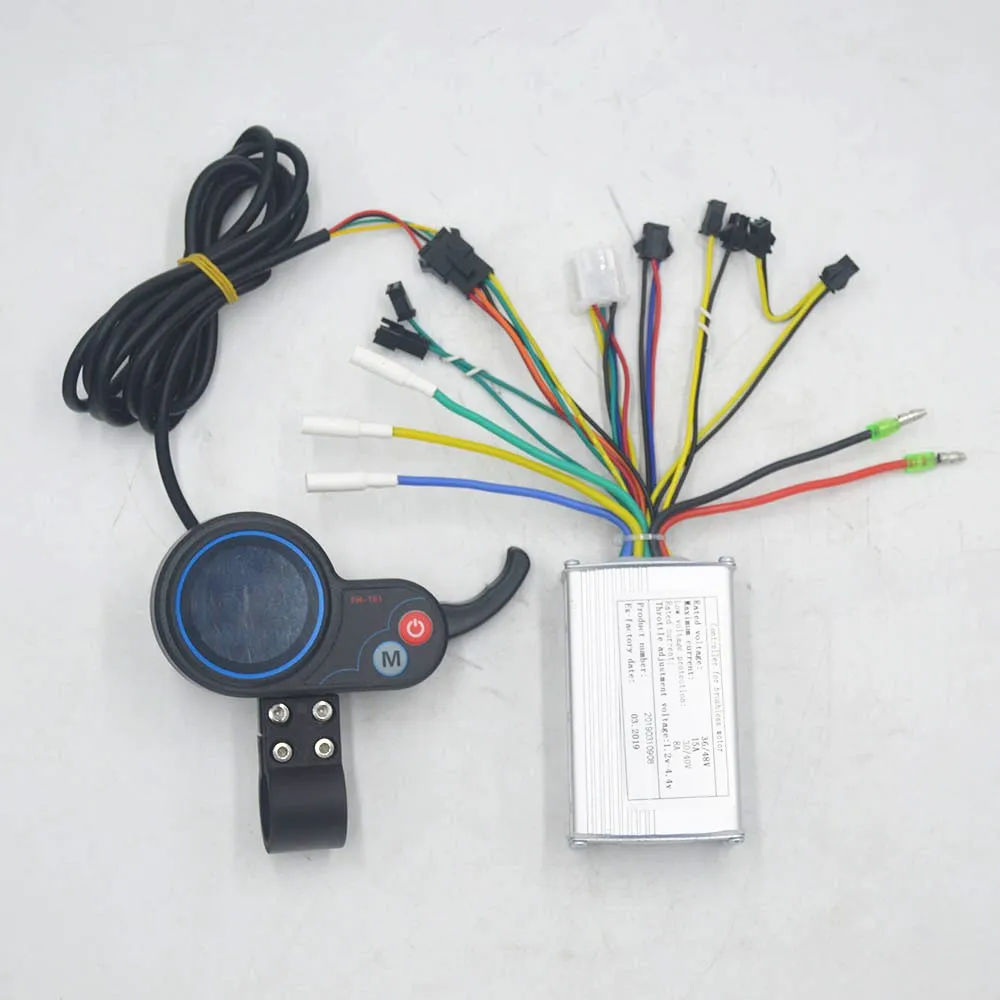

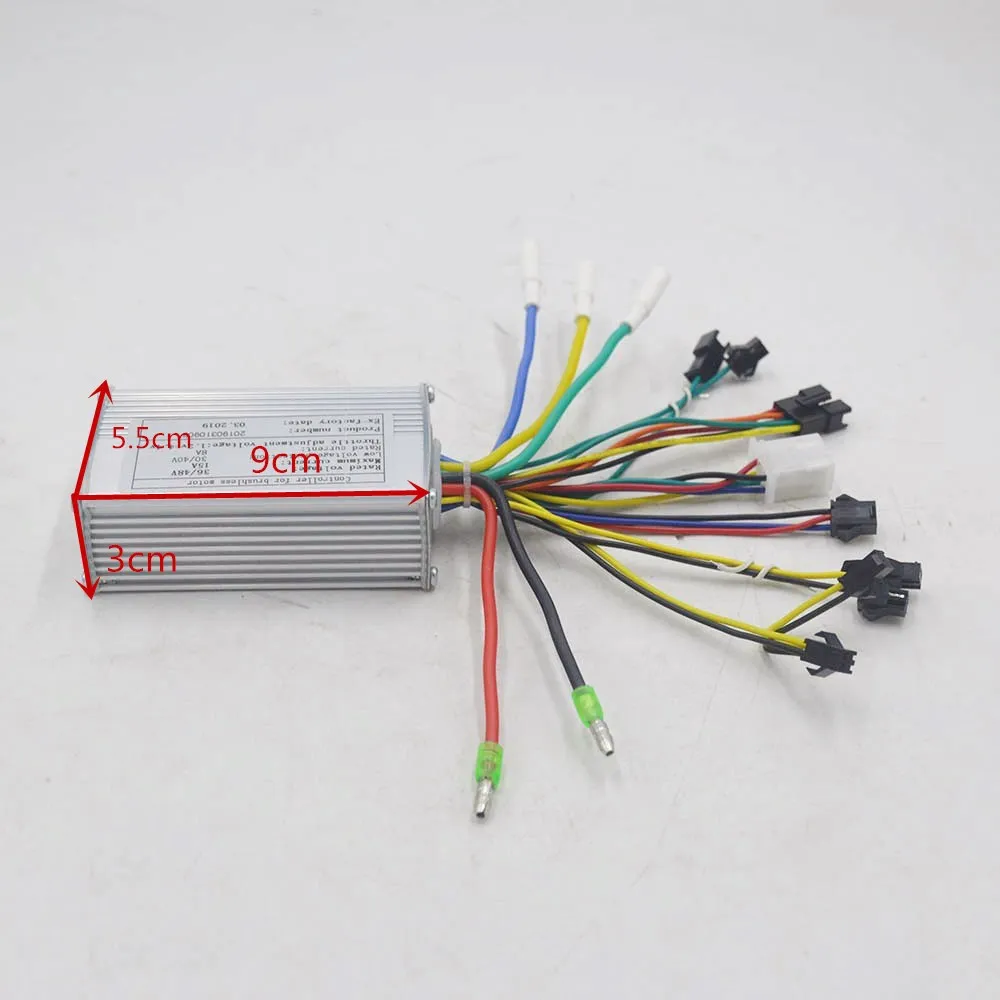

ebike controller kit 250W 350W 24V/36V/48V DC Mode escooter Brushless Motor Controller with electric bike LCD Product Details: Motor style: Brushless Weight:700g Rated voltage: 24V 36V 48V Rated power:250W 350W Low-Voltage Protection: 24V:19+-0.5V 36V:29+-0.5V 48V:39+-0.5V Current:15A(350W) , 13A (250W) Current Limite: 250W:13A+-1A 350W:15A+-1A Use for: electrice scooter,Electrci Tricycle,ebike,e-scooter,e-car,e-golf car etc Package include: 1pcs*controller with LCD screen Screen Show: 1. The current speed is displayed 2. Battery charge (voltage) display 3. Accumulated mileage display 4. Single mileage display 5. Headlight display Press and hold M and the power button to enter the mode setting interface, short press M to switch parameters. Display Setting: P03:Voltage setting P06: Wheel diameter P07: Number of speed magnets P99: One-key recovery function (in the P99 interface, press and hold M until the value is cleared) battery + battery – electric brake light or horn line(yellow+, black-) PAS(pedal assist sensor) Hall line display line(throttle line) self-learning line motor line (1.Contact the motor line 2.Contact the battery line(red:+ , black:-) 3.Contact the hall line 4.Contact the display line 5.Docking the two self-learning lines, turn on the power supply of the electric vehicle, twist display throttle, the motor will forward or reverse. (Separate the self-learning line when the forward transmission can be. if the reverse, Separate the self-learning line. then Docking the self-learning line again, Separate the self-learning line when the forward transmission can be.) 6.Other functions can be connected as needed.)
