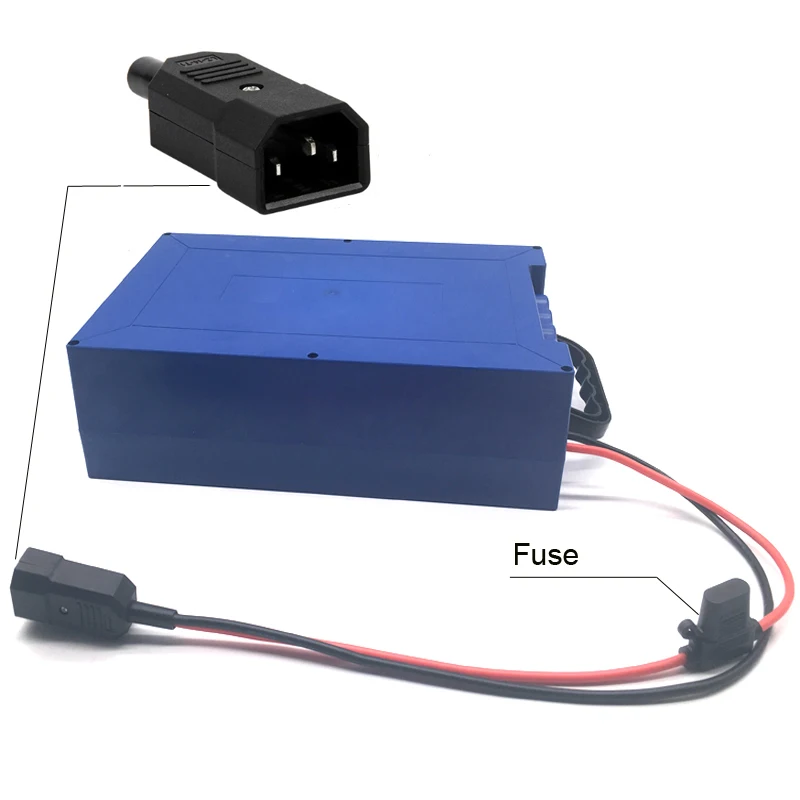

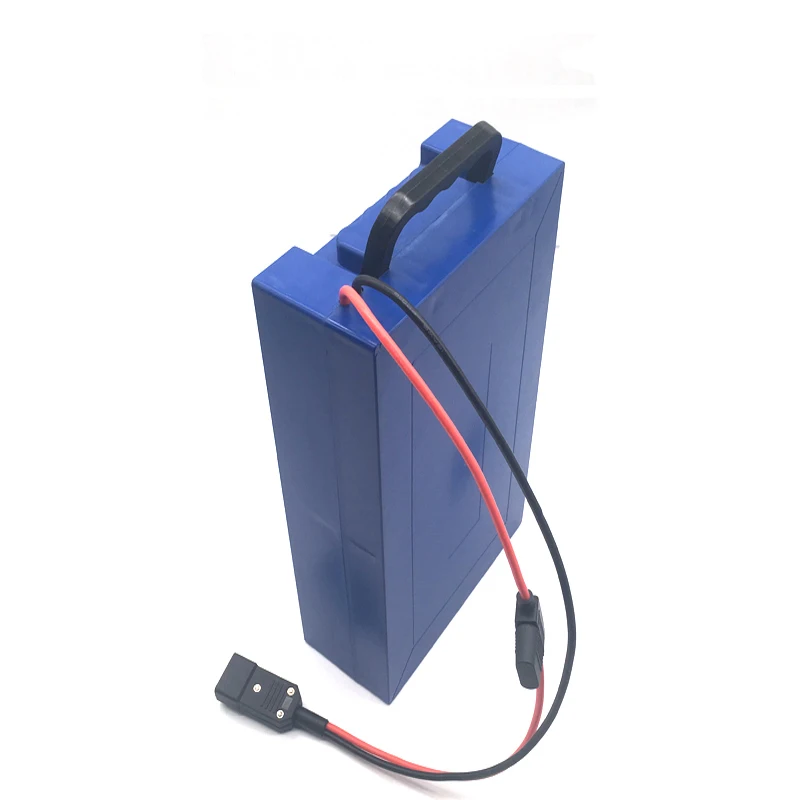

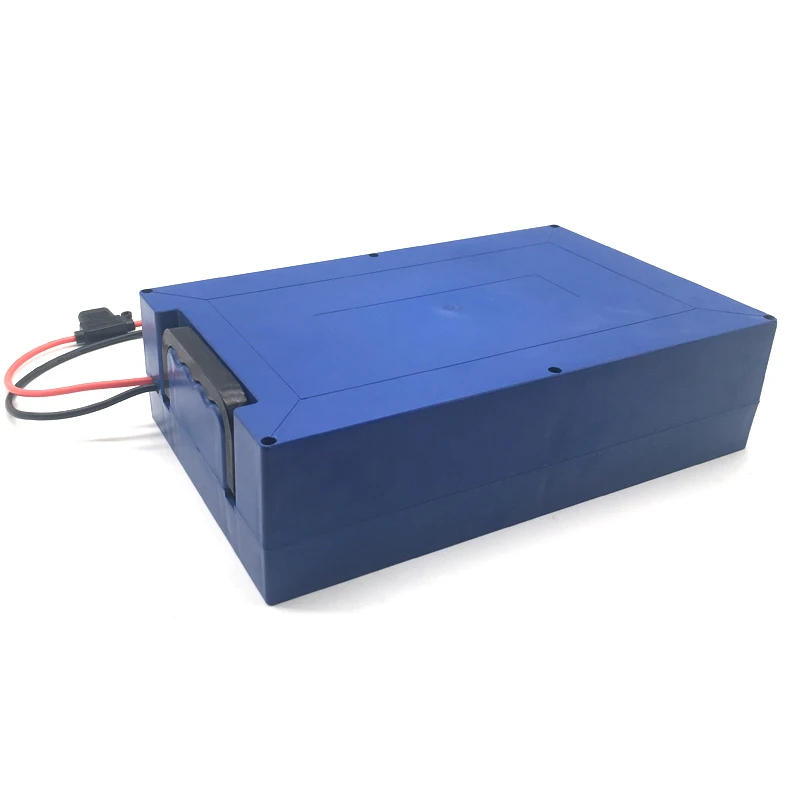

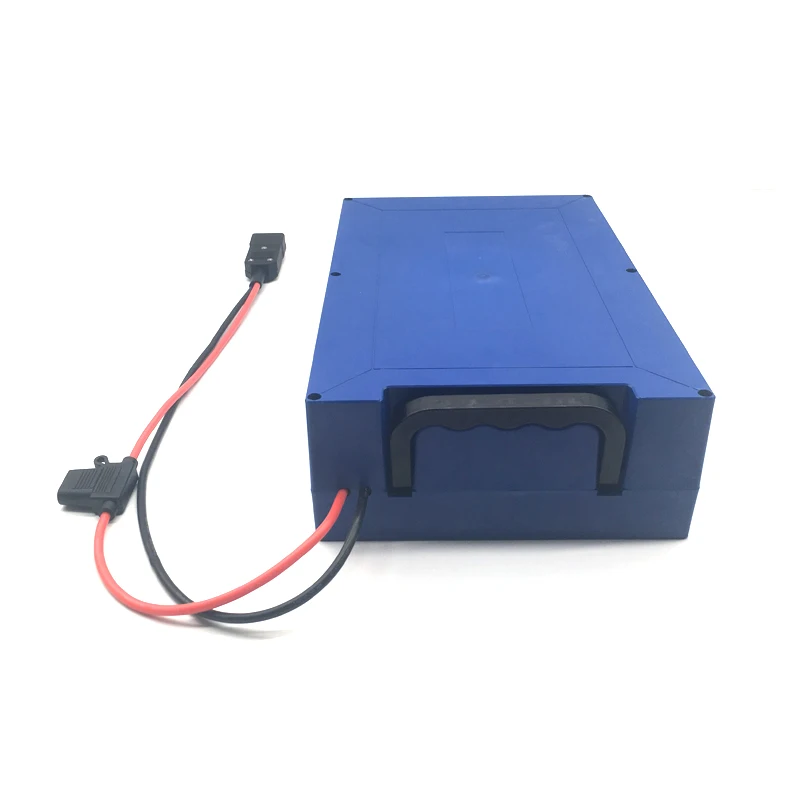

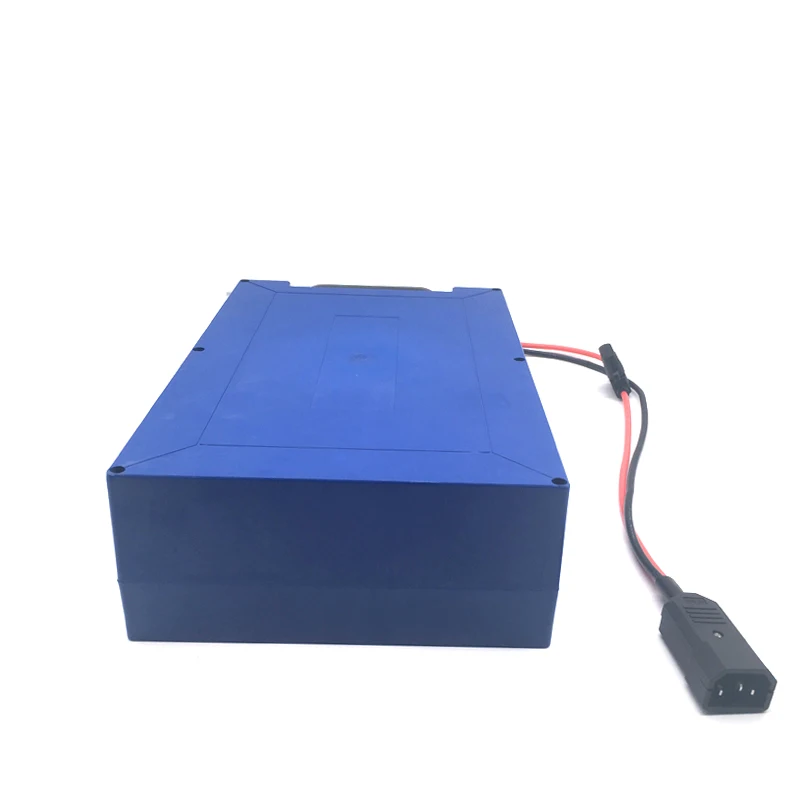

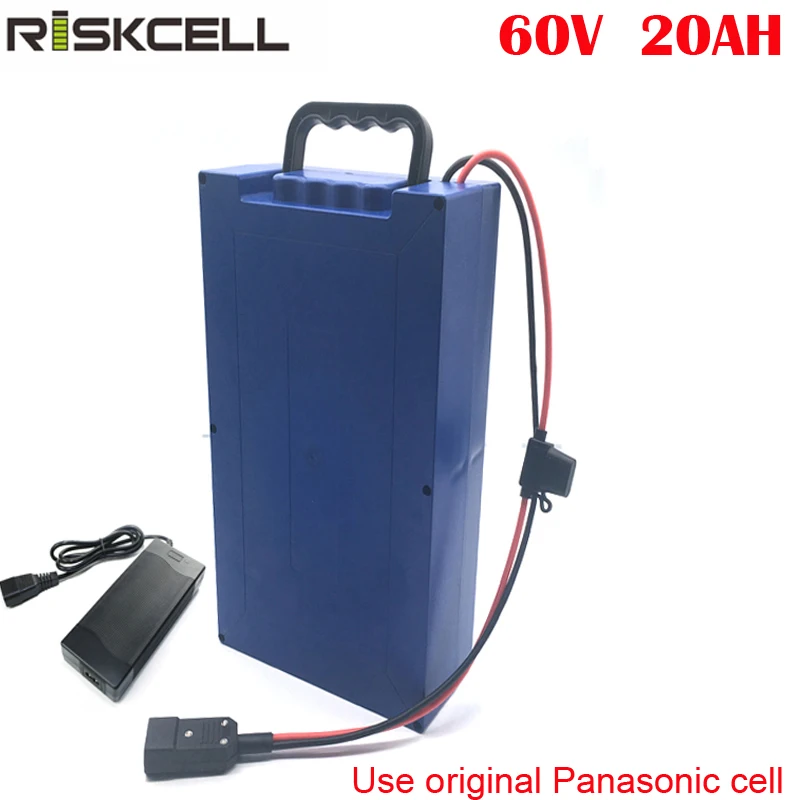

Features: Battery Model 6020 Voltage 60V Capacity: 20AH Type: 3.7v 3C Panasonic 18650 cell Source Resistance 40 Charge Way of charge CC/CV Standard charge Current 2A Max charge current 5A Charge Cut-off Voltage 84.0V CellOvercharge protection Voltage 4.2V/CELL Discharge Continouns Discharge Current 30Amp can be customized Peak Discharge Current 100Amp can be customized Cell Overdischarge Voltage 2.8v/cell Discharge Cut-off Voltage 56.0V Cycle Life 1000 times Safety test No firs ,No explosion Overcharge Safety Test Crush Safety test Needling safety test 130 C high Temperature safety test Weight 5.0kg Size 85*185*300mm (11*6) (can be customized) Fit moto power Less 1800w Working Temperature 0C—45C -20C---65C Retention of charge >95% Certificate CE,UL,ROSH,UN38.3,MSDS Application E-bike,E-motorcycle,E-scooter Warranty One year Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter ! (Suitable Wattage of Motor: from 250 Watt to1800Watt suggested.) 60V 20AH 1800W Li-Po /Li-ionBatterywith Case,BMS and Charger: Recommend to use for 60V 200W, 60V 250W, 60V 350W, 60V 500W, 60V 750W, 60V 1000W ,60V 1800W Motor. Parts included: 1. Lithium Battery withcase 2. Built-in 30AmpBMS board 3. Charger (67.2V 2.0A 100-240V 50/60HZ US ,UK,EU ,AU PLUG) Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by. Does not use or leave the battery near a heat source as fire or heater Use the battery charger specifically for that purpose when recharging. Do not reverse the position and negative terminals. Do not connect the battery electrodes to an electrical outlet. Do not discard the battery in fire or a heater. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. Do not strike, trample or throw the battery. Do not directly solder the battery and pierce the battery with a nail or other sharp objects 1. Cells -A grade cellsto make sure batteries inhigh and full capacity 2. Protection -Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload 3. Compose Type : Injection Technology tomake battery more stable. 4. Certifications : CE,UL,FCC, RoHS, ISO9001 5. Long life cycle, No memory, environment friendly. Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate itinto our battery module) and contactor.Besides the basic functions such as over charge/ discharge,over current, short circuit, overtemperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makesthe system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily; 1. High energy density 2. High working voltage for single battery cells 3. Pollution-free, environment friendly 4. Long cycle life; It extends its cycle life up to 800 cycles 5. Capacity, resistance, Voltage, platform time consistency is good 6. Simplifying battery management system (BMS) and a battery charger 7. With short-circuit production function, safe and reliable 8. Factory price & High quality 9. Fast charging 10. Light weight, small size 11. Large overcharge tolerance and safe performance 12. Self balance 1.Light electricvehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs 2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car 3. Electric tool: electric drill, electric saw, lawn mower 4. Remote control cars, boat, aircraft, toys, 5. Solar and wind power generation energy storage devices 6. UPS emergency lights, warning lights and miners lamp 7. Small medical equipment and portable equipment 8.Widely used for Electric bicycle,golf car,electric wheelchair,power tools,scooter, UPS,Solar&Wind energy storage system,EV,etc. Experience We have more than 10years experience in producing Nicd&NiMH&Lithium battery cell and pack,7years of experience to manufacture Lithum ion battery,the factory passed ISO 9001:2008 certification. Strict process management and control Each process for making battery were under strict management and control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year Guarantee,there are safety and operating instructions for your reference. Quick response to clients' enquiries within 12hrs Tailor-made solution provided by our experienced team and professional engineers for lithium polymer battery More than 10 years experience in producing battery products for various application. Value quality and long-term cooperation to reach win-win relationship.
